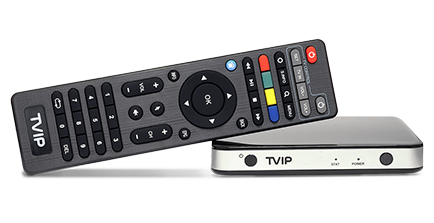

TVIP S-Box V.501
The embedded FLASH memory is faster — we are now using eMMC instead of NAND. The memory size is doubled compared to the TVIP S-v Box.500. The model with WiFi 802.11 (b/g/n)
Chipset: Amlogic S805 quad core 1,5 GHz
Video Resolution: 1920x1080
3D Graphics: OpenGL ES 2.0 (Mali-450 quad core)
Memory: RAM 512 Mb, Flash 4 Gb
Interfaces: HDMI, AV, Ethernet, USB, MicroSD Card, ext.IR, Wi-Fi 802.11 (b/g/n) 2,4 GHz
Amlogic S805 Quad Core 1,5 GHz
Support HEVC
HDMI
WiFi 802.11 (b/g/n) 2,4 GHz
Specifications
| Operating system | Linux |
| Supported Middleware | TVIP TMS, IPTVPORTAL, Open JSON API, Stalker, Microimpuls, Smotreshka, HTML5/JS portals |
| Remote provisioning | TR-069 or TVIP XML |
| Containers | MPEG-TS, MPEG-PS, MP4, MKV, AVI, MOV, FLV, OGG |
| Protocols | UDP, RTP, HTTP, HLS, MPEG-DASH, RTSP, SMB, NFS, DLNA |
| CAS/DRM | TVIP, IPTVPORTAL, BISS, Widevine L3, optional: PlayReady, Verimatrix 3.x |
| Video codecs | H.265, H.264, MPEG4 ASP, Xvid, MPEG2, MJPEG up to 1080p 60fps |
| Audio codecs | MPEG/MP3/MPA, AAC, WMA, OGG, WAV, FLAC, APE |
| Subtitles | DVBSUB, VOBSUB, Teletext, SSA/ASS, SubRip, MOV_TEXT, WebVTT |
| Images | JPEG, PNG |
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Configurations
Middleware TVIP
Time Shifted TV
TV Schedule
Customer Device Management
One Interface for All Devices
Video on Demand
TV Archive
|One interface on all STB and Smart-TV Device Support: TVIP, Dune, Mag, Eltex, Android TV, Samsung Smart TV, LG Smart TV.
|The ability to handle a single instance Middleware several independent groups of consumers or IPTV/OTT operators (convenient for content aggregators and operators providing agent scheme).
|Quick interface client devices (a native application on the STB without the use of WEB-portal for TVIP devices).
